Fabric Extend

Table 1. Fabric Extend product support

Feature

Product

Release introduced

Fabric Extend

5320 Series

Fabric Engine 8.6

5420 Series

VOSS 8.4

5520 Series

VOSS 8.2.5

5720 Series

Fabric Engine 8.7

7520 Series

Fabric Engine 8.10

7720 Series

Fabric Engine 8.10

VSP 4900 Series

VOSS 8.1

VSP 7400 Series

VOSS 8.0

Fabric Extend over IPsec

5320 Series

Not Supported

5420 Series

Not Supported

5520 Series

Not Supported

5720 Series

Fabric Engine 8.7

Supported on 5720-24MXW and 5720-48MXW

Supported using Fabric IPsec Gateway

7520 Series

Fabric Engine 8.10

Supported using Fabric IPsec Gateway

7720 Series

Fabric Engine 8.10

Supported using Fabric IPsec Gateway

VSP 4900 Series

VOSS 8.3

Supported on VSP4900-12MXU-12XE and VSP4900-24XE

Supported using Fabric IPsec Gateway

VSP 7400 Series

VOSS 8.2

Supported using Fabric IPsec Gateway

You can use these switches in a main office of a hub and spoke deployment or to connect one Data Center to another Data Center.

Fabric Extend enables Enterprises to extend the Fabric Connect technology over Layer 2 or Layer 3 core networks. The logical IS-IS interface is the mechanism that enables Fabric Extend to connect SPB fabric nodes. When connecting to a Layer 3 core network, logical IS-IS interfaces create virtual tunnels and encapsulate SPB traffic by adding a VXLAN header to SPB packets.

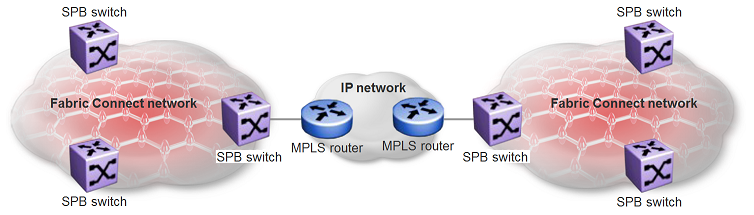

The following figure illustrates two Fabric Connect “islands” separated by a third-party core IP network. The IP network could be third-party equipment in an enterprise or a service provider‘s infrastructure such as an MPLS VPN service.

Click to expand in new window
Fabric Connect networks connected by an IP network

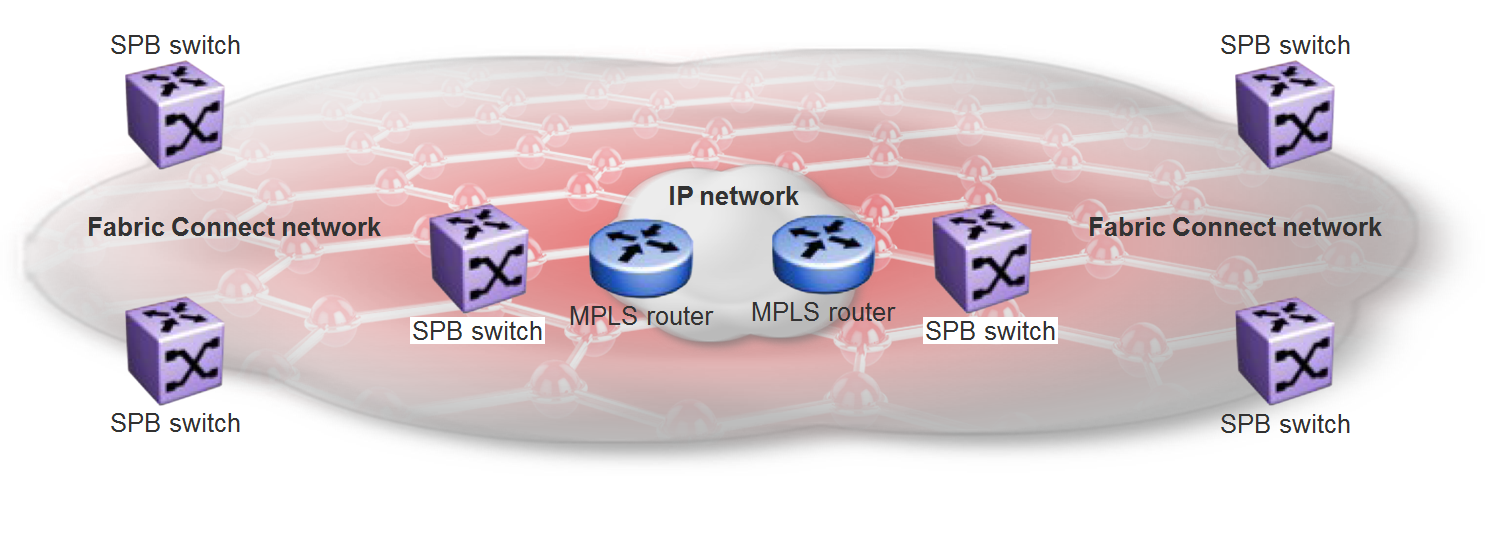

The following figure illustrates how Fabric Extend enables you to connect the fabric islands to create ONE Fabric Connect network. This figure shows a Layer 3 core network where Fabric Extend uses IP tunneling by adding a VXLAN header to the SPBM packets. This can be over a third party IPv4 transport network such as MPLS IP-VPN or in a Campus IP backbones.

Click to expand in new window
Single Fabric Connect Domain realized using Fabric Extend

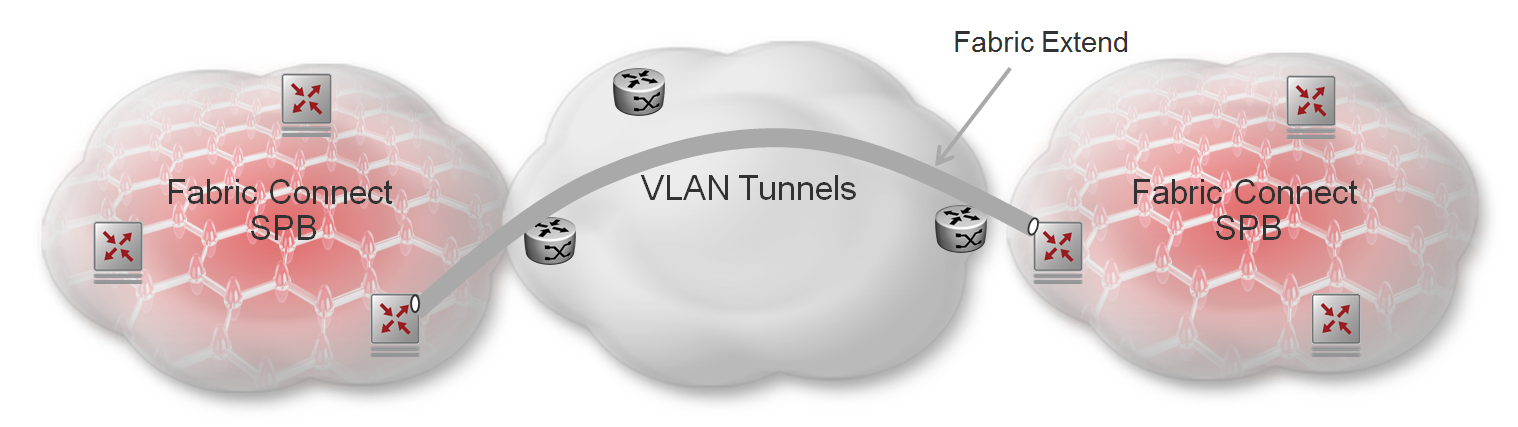

The following figure shows a Layer 2 core network where Fabric Extend can transport SPBM packets over a Layer 2 MPLS VPLS or PBB E-LINE service by creating layer 3 tunnels over a Layer 2 third party network.

Click to expand in new window
Fabric Extend over VLAN tunnels

Advantages of Fabric Extend

Fabric Connect is an Ethernet-based, industry-standard (IEEE 802.1aq) networking virtualization solution. With Fabric Connect, you can have thousands of virtualized service instances at any point in the network. Other Fabric Connect advantages include rapid time to service, Layer 2 and Layer 3 Unicast and IP Multicast virtualization, and scalable IP multicast. But the most significant advantage of Fabric Connect is that you provision services at the network edge only, not the core.

The Fabric Extend feature enables you to extend the Fabric Connect model over Layer 2 and Layer 3 core networks. The interconnection of Fabric Connect deployments can be over any IP-based network whether it‘s a campus backbone, Data Center, or a MAN/WAN IP MPLS network.

With Auto-sense enabled, Fabric Extend leverages LLDP to establish Fabric Extend tunnels automatically between a Fabric switch and the SD-WAN Appliance. Based on the LLDP standard, Fabric Extend information is transmitted using TLVs with LLDP Protocol Data Units (PDU) automatically.

For more information, see Auto-sense Port States.
